Africa Twin XRV 650 RD03 « MARATHON »

1st series - 1988



click to enlarge

click to enlarge

click for the big one

.
.
.

The presentation of the project "50 Africa Twins in Dakar"

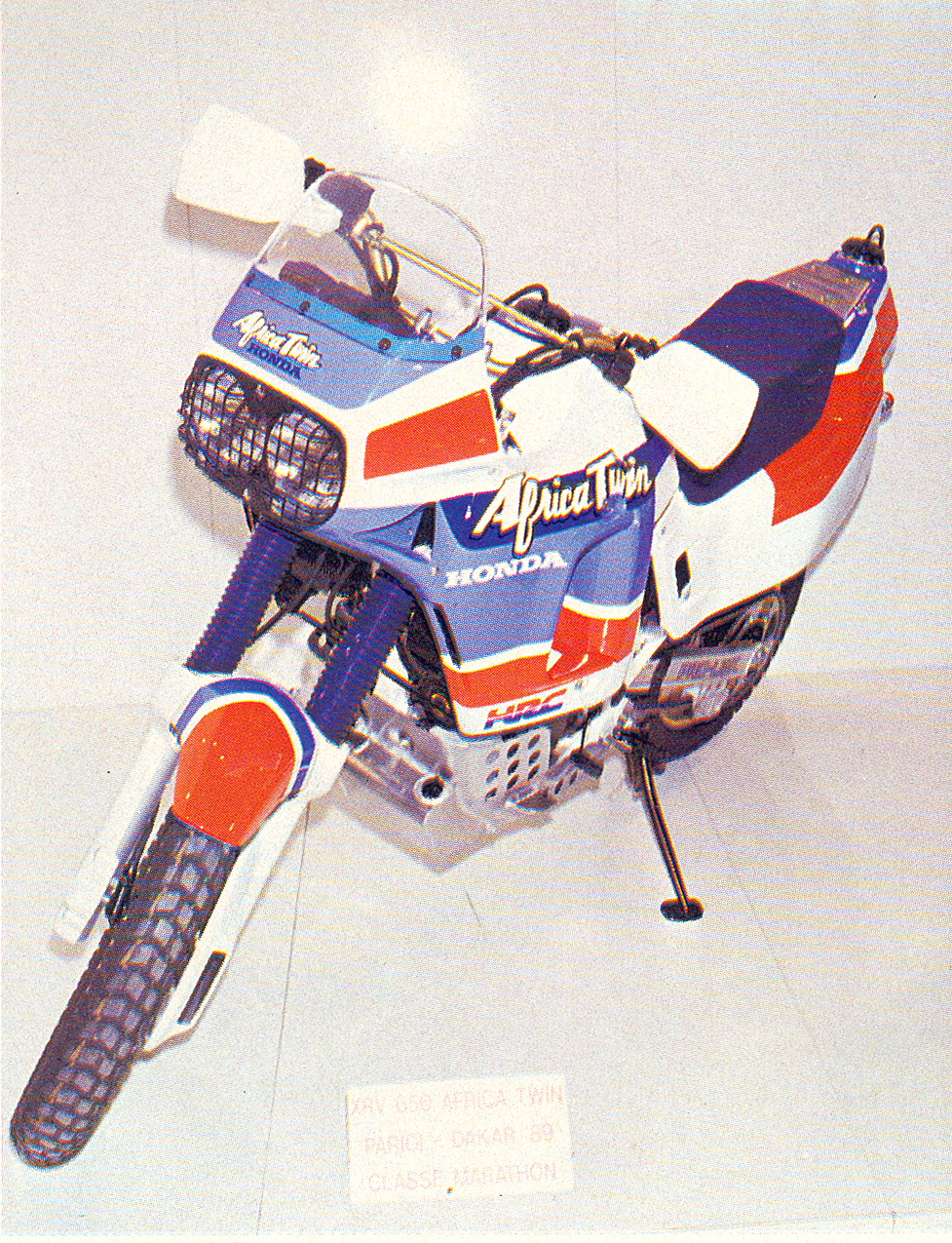

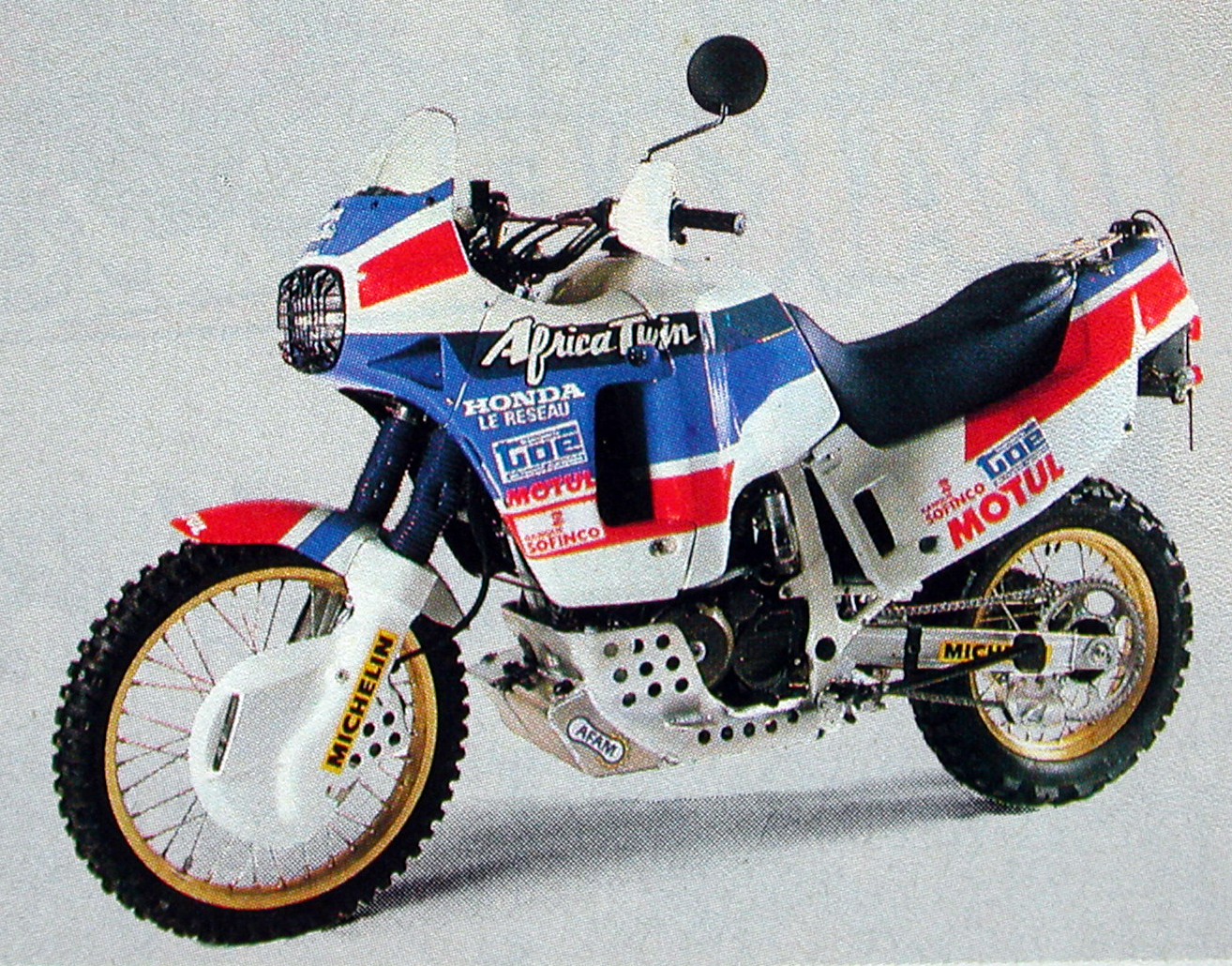

The Marathon attended the Paris Motor Show 1988

.
.
.



our Marathons ...

clicl to enlarge

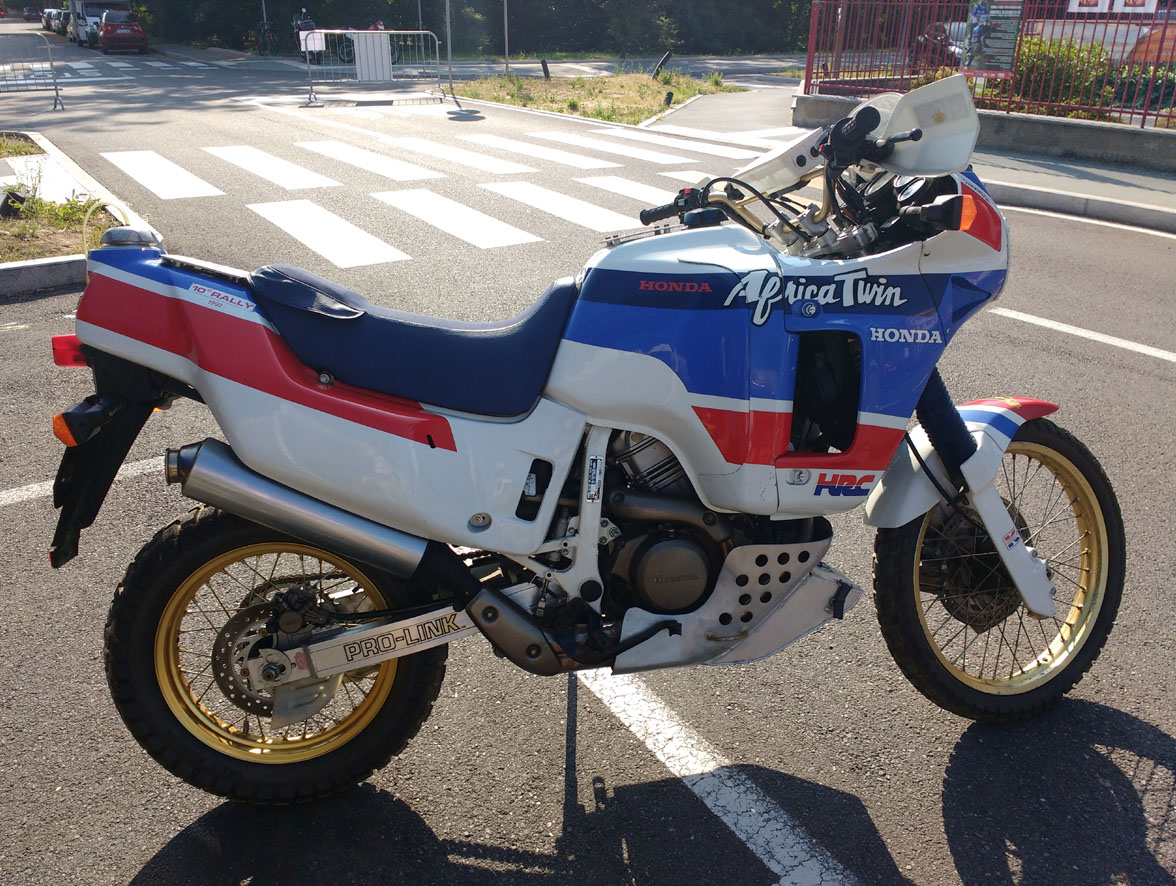

The Marathon of Morand-Monteil, restored by Cédric

click to enlarge

The Marathon of Roberto Boano

click to enlarge

The Marathon of Paolo DiMauro

click to enlarge

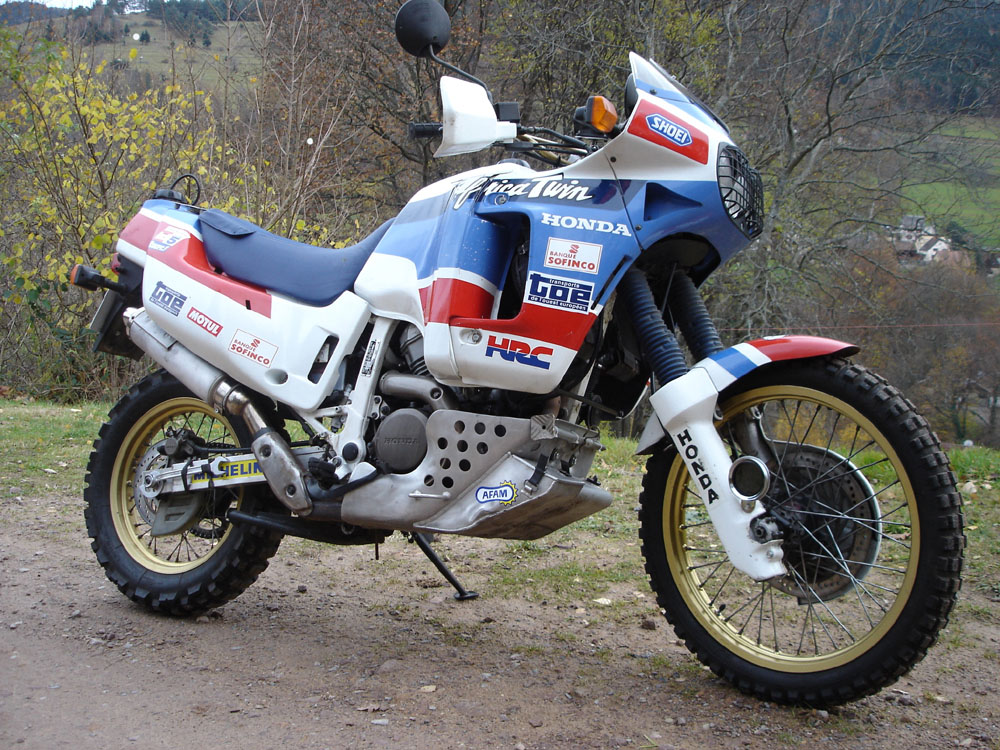

The Marathon of J.P. Heitz, restored by Yves

The Marathon of Roberto Boano

click to enlarge

The Marathon of J.P. Heitz, restored by Yves

click to enlarge

La Marathon of Régis Auvray, restored by Cédric

click to enlarge

The Marathon of Régis Auvray, restored by Cédric

click to enlarge

The Marathon of Chamagne, restored by Cédric

click to enlarge

The Marathon of Hedouin, now of Mandy

click to enlarge

The Marathon of Tardieu

click to enlarge

The Marathon of Audot/Roche, restored by Cédric

ckick to enlarge

The Marathon of Delphine, restored by Zogui

click to enlarge

The Marathon of Carlos Miret Bernal

ckick to enlarge

The Marathon of Delphine

click to enlarge

The Marathon of Naouel, now of Fabrice

click to enlarge

The Marathon of Carlos Miret Bernal

click to enlarge

The Marathon of Naouel, now of Fabrice

click to enlarge

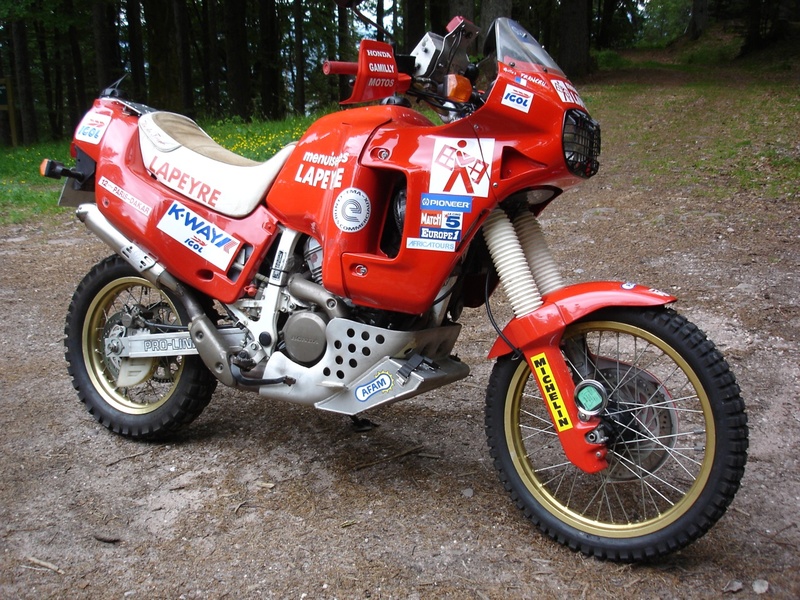

The Marathon of Gilles Francru (Dakar '90)

The Marathon of Marilyn Lacombe,restored by Eric

click to enlarge

The Marathon of Francru (Dakar '90)

click to enlarge

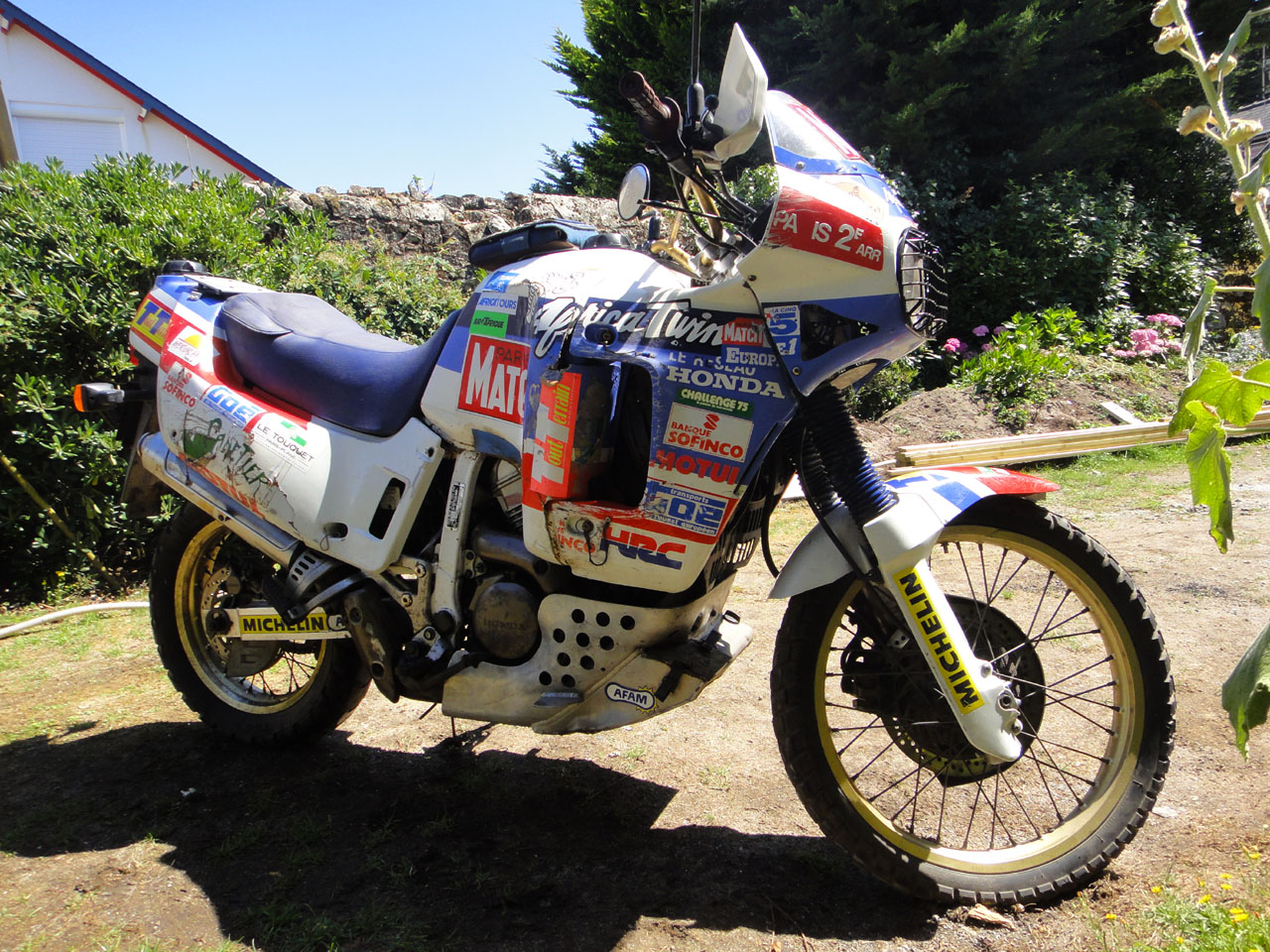

The Marathon of Bernard Lebon

click to enlarge

The Marathon of Giacomo (ex-Saravesi)

click to enlarge

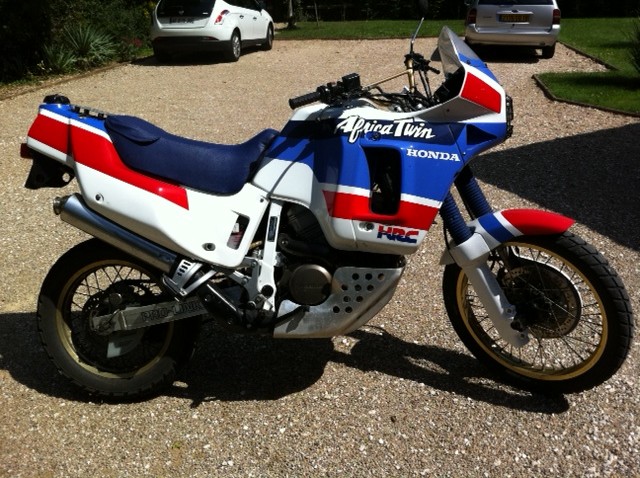

The Marathon of Hugues Arancio



click to enlarge

Eric in action!

click to enlarge

Yves in action!

click to enlarge

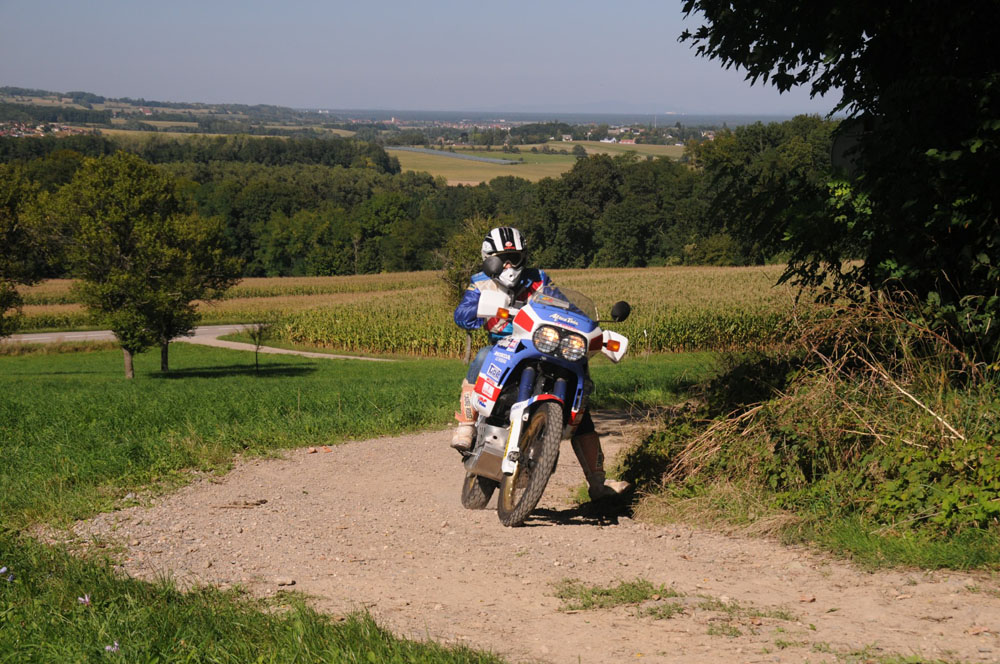

Cédric in action!






Modifications to Honda Africa Twin XRV 650 RD03 Marathon (first series - 1988)

# to check

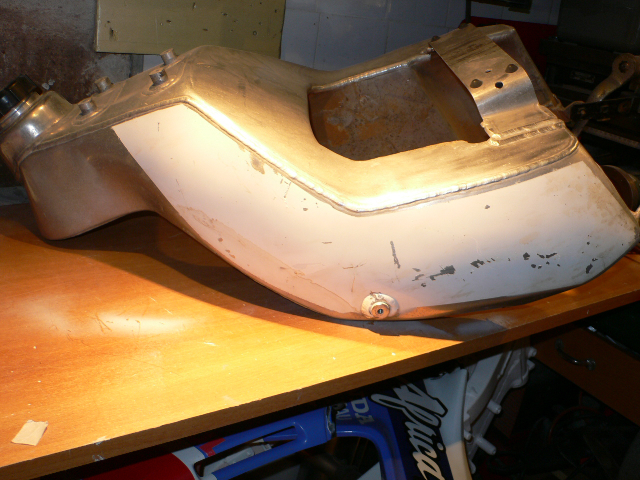

#Larger tank with approx 41.2lt capacity

click to enlarge
4 threaded pins to mount a bag on the tank

click to enlarge

click to enlarge

Rear aluminum tank, capacity approx 17.4 lt
click to enlarge
.
Non-return valves on each tank caps
click for the big one
click for the big one
Both tanks have bulkheads in soft sponge-like material to restrict the movement of fuel when full
click for the big one

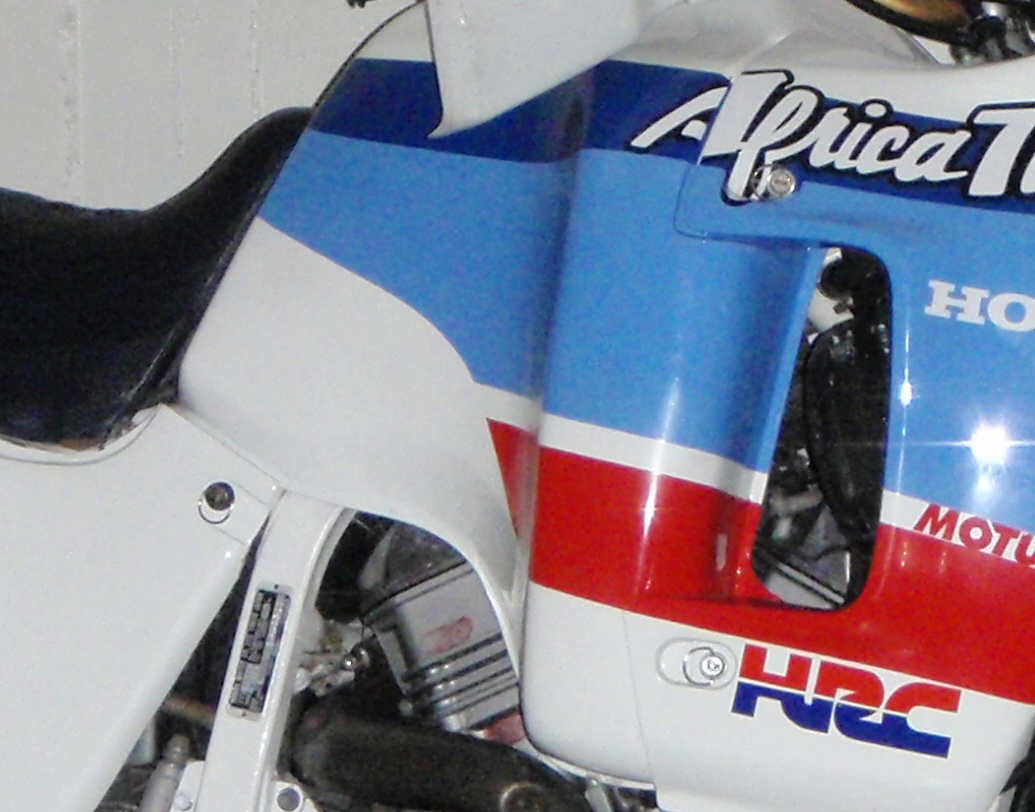

Side protection strips of plastic for the tank front

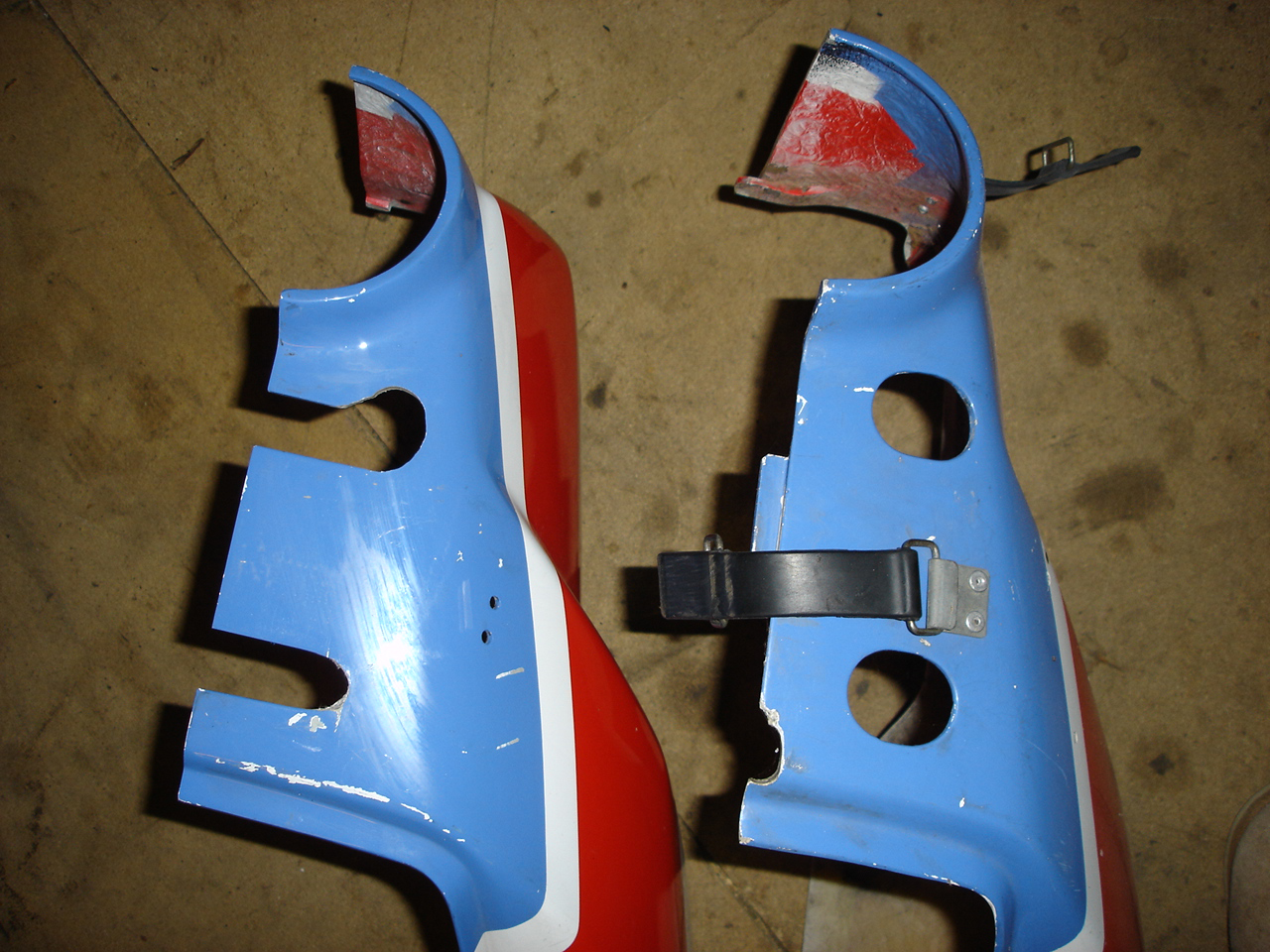

Special fiberglass rear side panels to protect the inner tank, left without opening for the filter access and quick release, and also differences in the upper tail
click to enlarge
Instrumentation including rally trip, mechanical roadbook, compass and document holder
Engine cut-off sensor in case of fall
click to enlarge

#Front fairing with built in air flow diverters
clik for the big one
.
Reinforcing bar connecting the front side fairings
click to enlarge

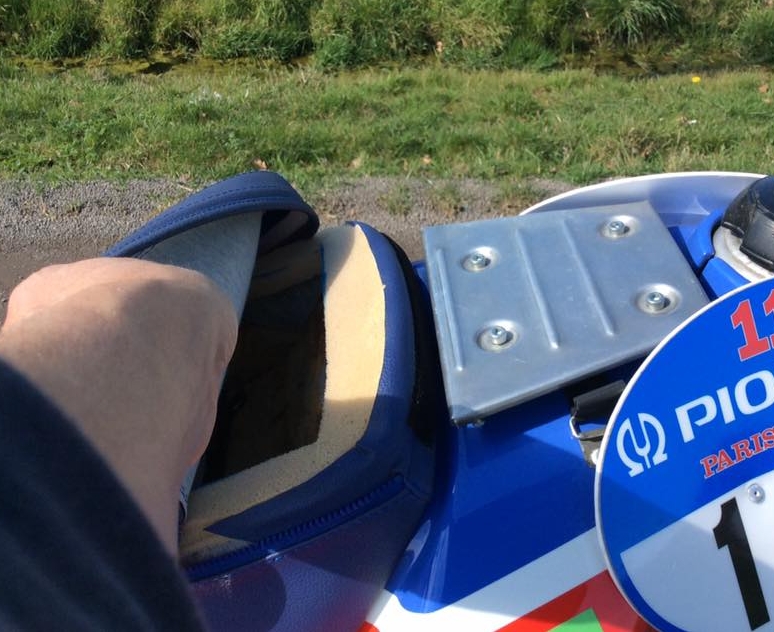

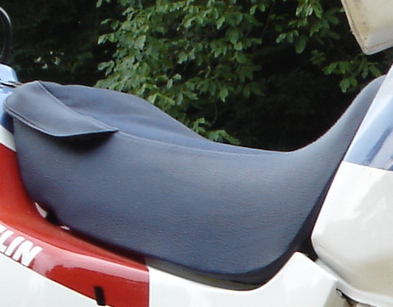

Saddles were well padded with pocket for location beacon
click to enlarge
.
Small luggage plate between the seat and rear fuel cap
.
Additional rear tail light

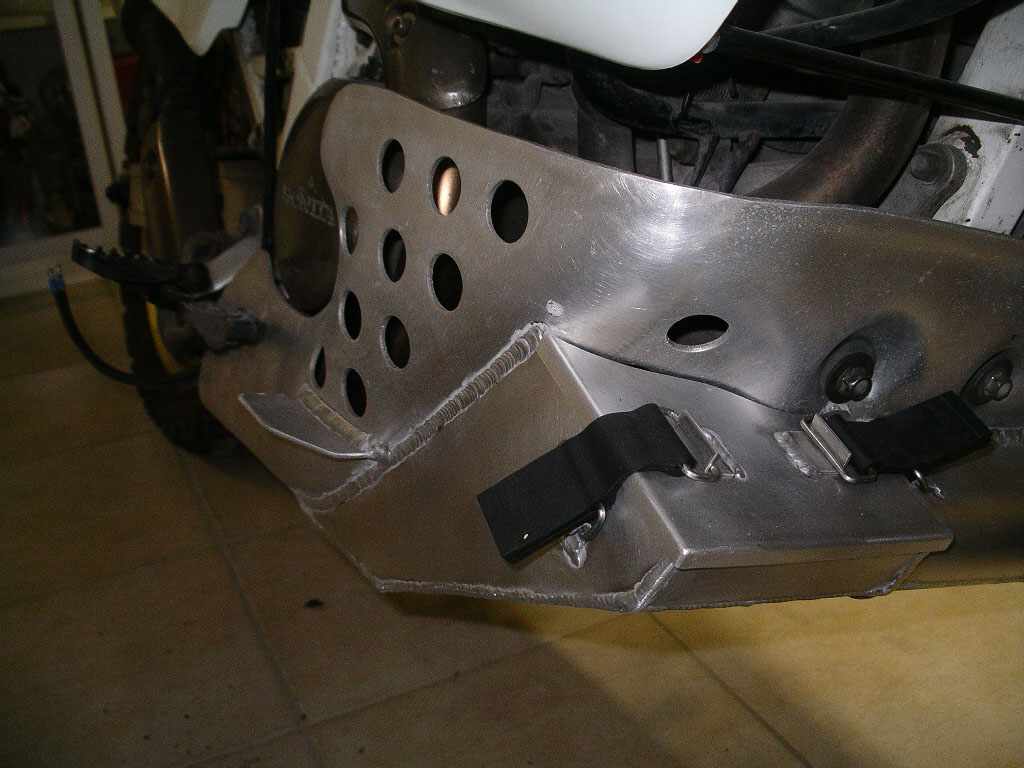

Additional storage for tools and fresh water mounted on protection plate
click to enlarge
click to enlarge

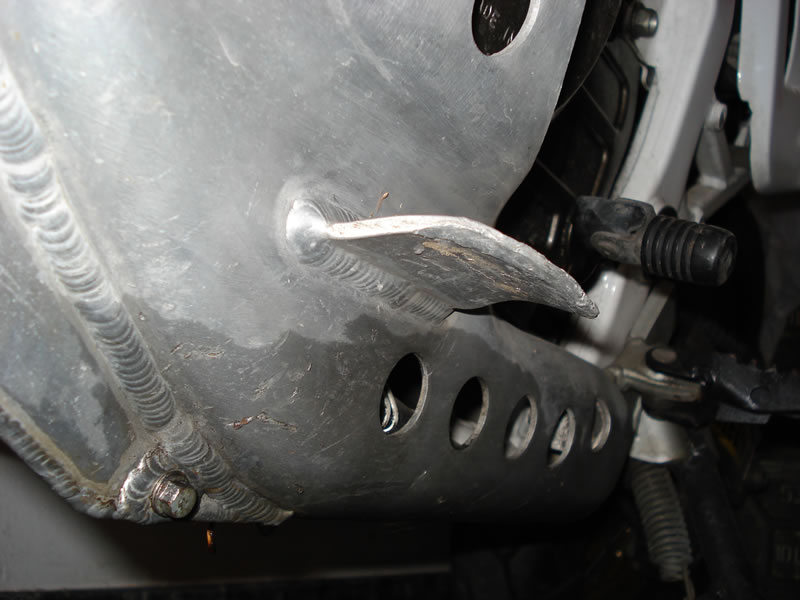

Additional tabs welded to the protection plate to protect the gear lever and brake lever
.
click to enlarge
Modified head gaskets to allow use of low octane fuel
.
# Carburetors without chokes?
.
# Both radiators with fans
.
# Forks lengthened by 10mm?
.
.
# Reinforced rear shock

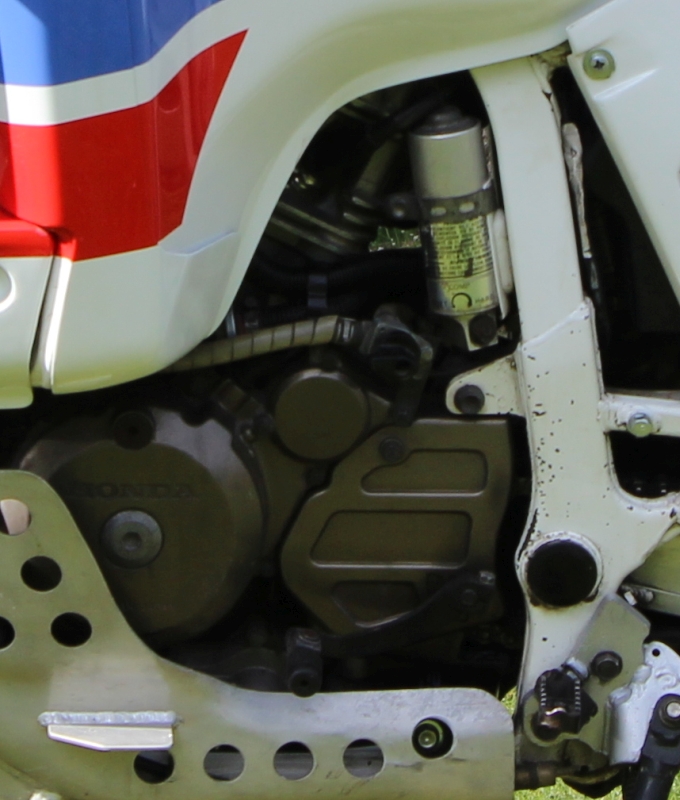

Chains guards were not used on the Marathon bikes
click for the big one.
.
Reinforced swingarm and CR250-500 chain guide
click for the big one
.
levetta di sicurezza su chiocciole forcellone
.
# Rear rim width 2.50 instead of 2.75
# Wider footpegs
click for the big one.
.
Side stand with larger base support
Additional support for right side to lift the bike. Was usually attached with clamps protection plate. Through two holes in the bottom of the plate, allowed to raising of either the front or rear wheel

click to enlarge

Right fork guard cut to expose the spindle retaining clamp to speed up removing the wheel, not standard on series 1 bikes but many drivers did for the race
.
Shortened front fender at the rear and punched holes as standard '88
.
Reduced plate holder

Chassis with serial numbers beginning with 5 (eg 5008xxx)
.
.
Engine serial numbers starting with 5 (eg 5008xxx)
.
.
Painted numbers on cylinder, front and rear wheel of motorcycles participating in the Dakar
.

.
