Africa Twin RD04 750 « MARATHON »





The presentation of the

Honda Europe Team

and

the bike!

click to enlarge






click to enlarge

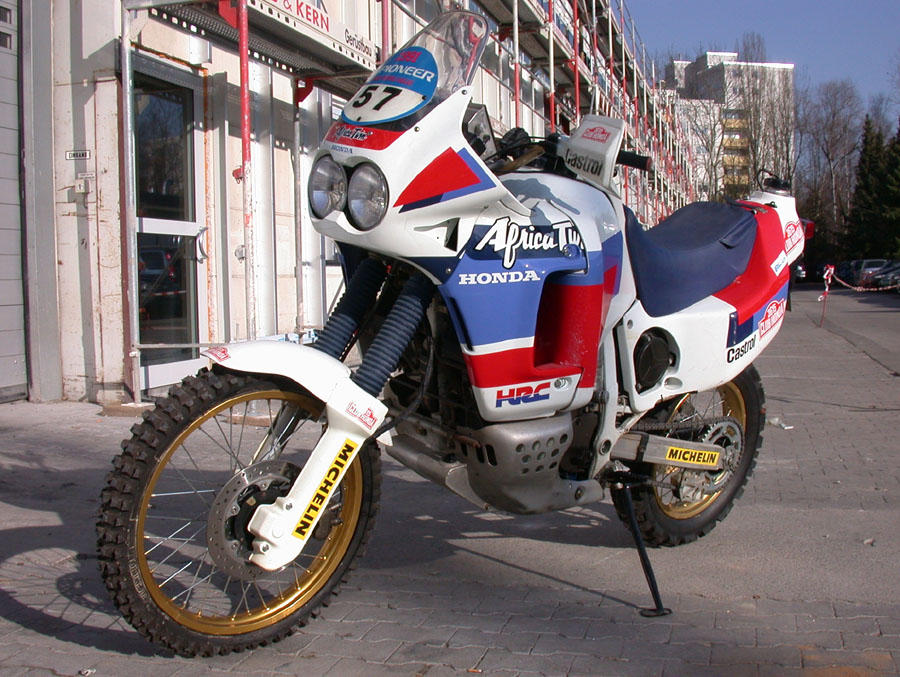

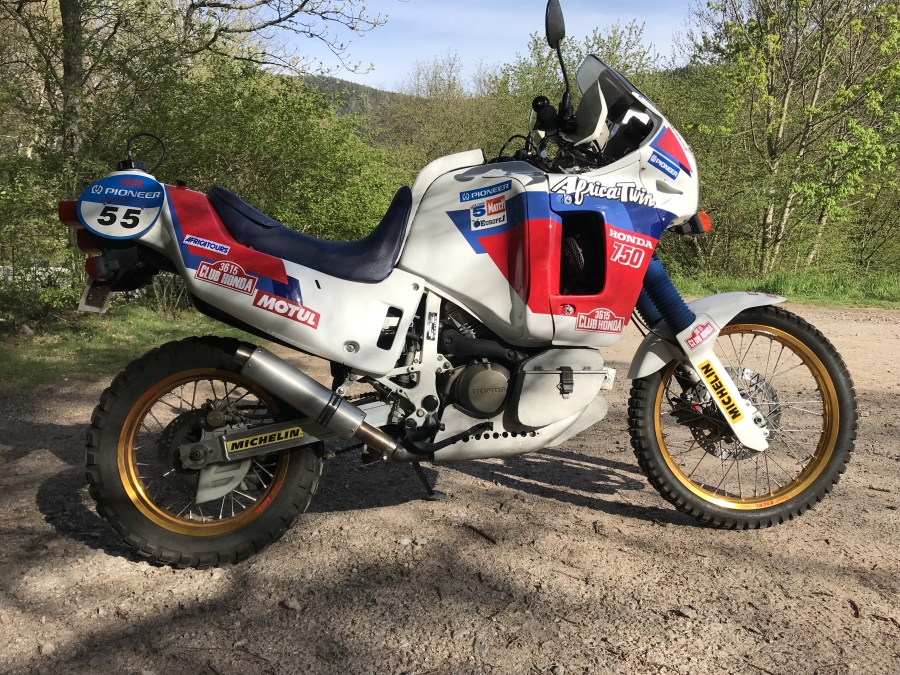

the Marathon of Eddy Hau

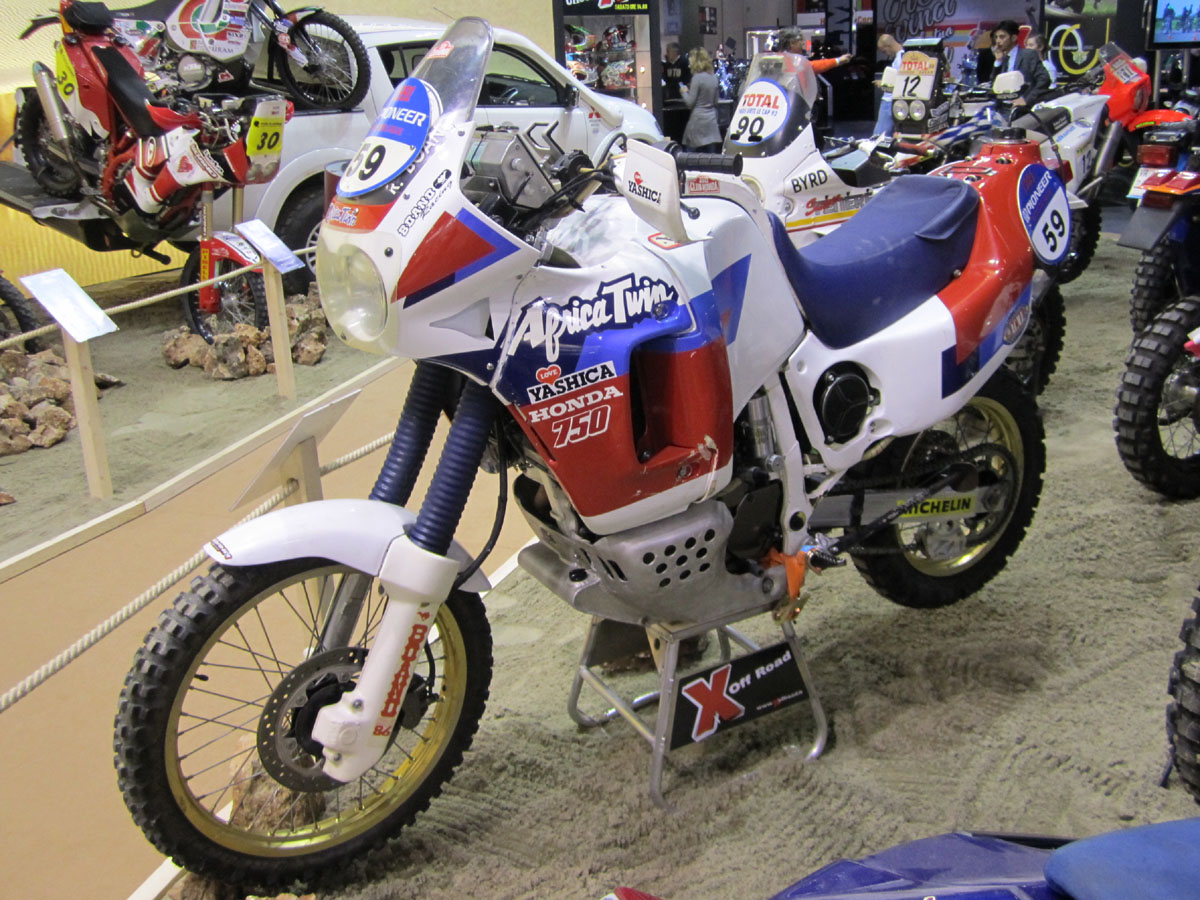

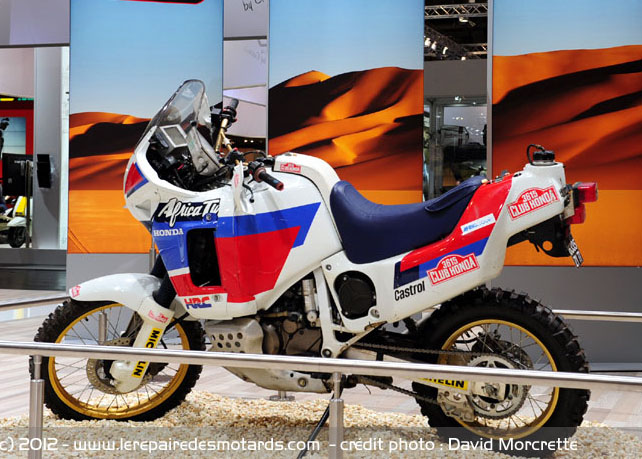

the Marathon of Boano at Eicma '11

click to enlarge

the Marathon of Hau

clicl to enlarge

the Marathon of Boluda, restored byJosep

one Marathon from Spain

click to enlarge

the Marathon of Boluda, restored byJosep

click to enlarge

the Marathon of Boano

click to enlarge

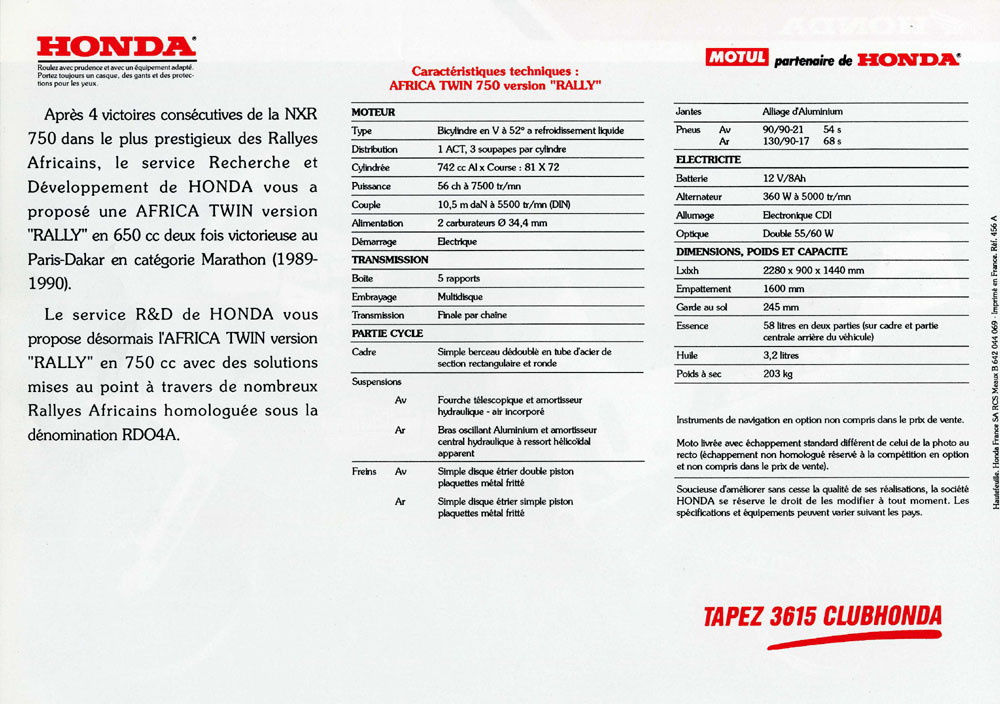

brochure Honda France

click to enlarge

the Marathon of Watson-Miller at the English National Motor Museum

the Marathon of Roberto Boano

click to enlarge

Found by a friend in a little Kenyan's school book!

the Marathon of Roberto Boano








Changes in the Honda Africa Twin XRV 750 RD04 Marathon vs. RD04 standard.

on the right: XRV 750 RD04 standard

38/40lt main front tank
click to enlarge
on the front tank there is a snorkel to solve the "breathing" issues of the 650 Marathon

16/17lt aluminium rear tanks

side protection strips on tank (as you can see is different from the 650 Marathon one)
GRP rear side panels to protect the inner rear tank

rally instrumentation including trip, compass and roadbook holder, gps. Support frame modified and renforced

zipped rear seat access for location beacon
fixed rings (instead of adjustable, like in the 650 2nd series) for attaching small luggage
.

additional rally tail light

reduced plate holder

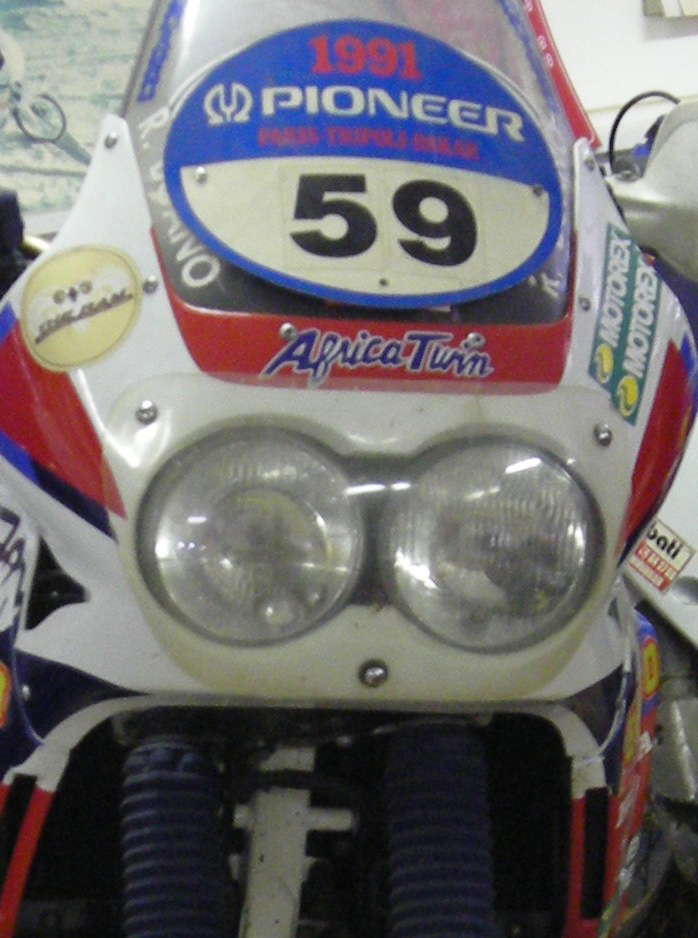

front lights protection
click to enlarge
opening for quick access to the air filter on the left side cover

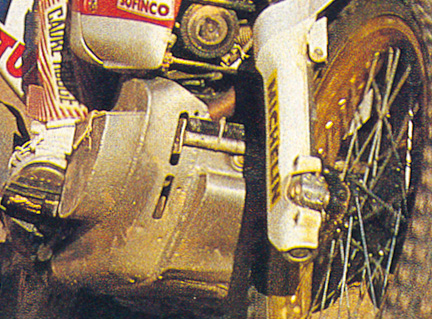

additional storage on protection plate for water and tools

reinforcing bar connecting the front side fairings

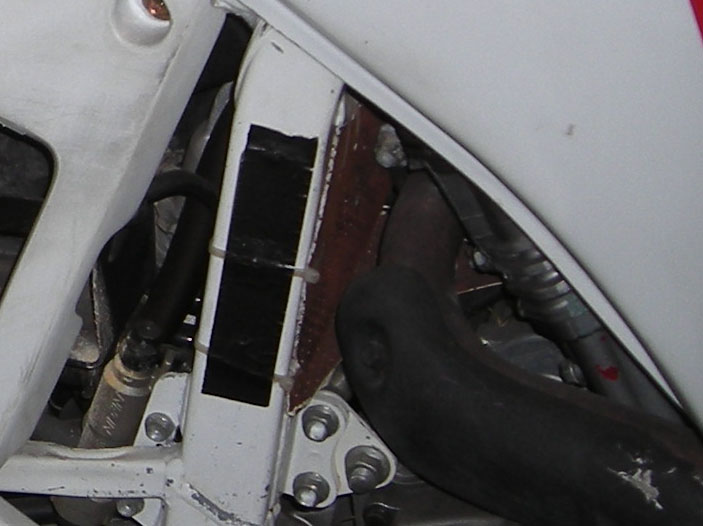

chafing between cylinders and air box
click to enlarge
.

additional radiator protection

.
dedicated performance exhaust

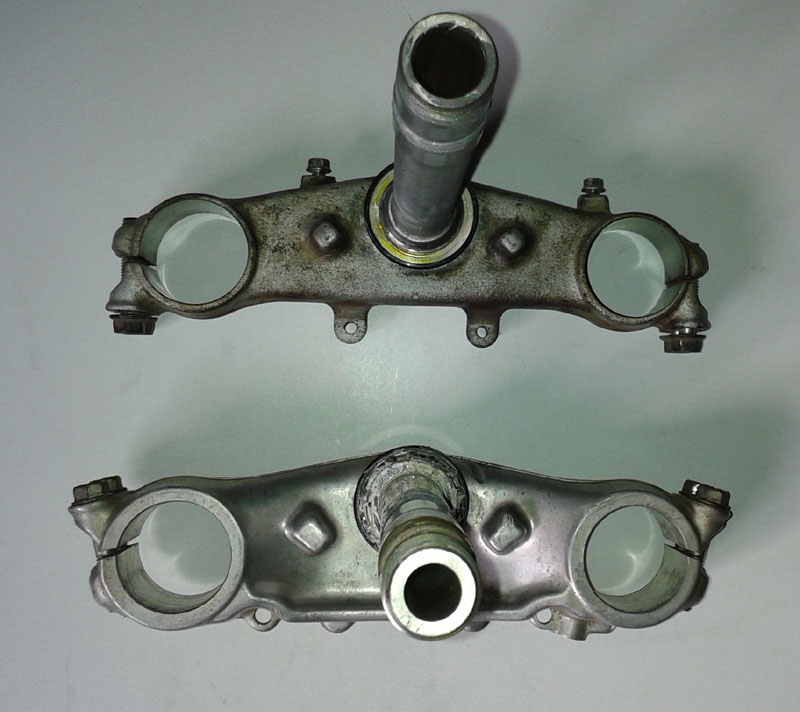

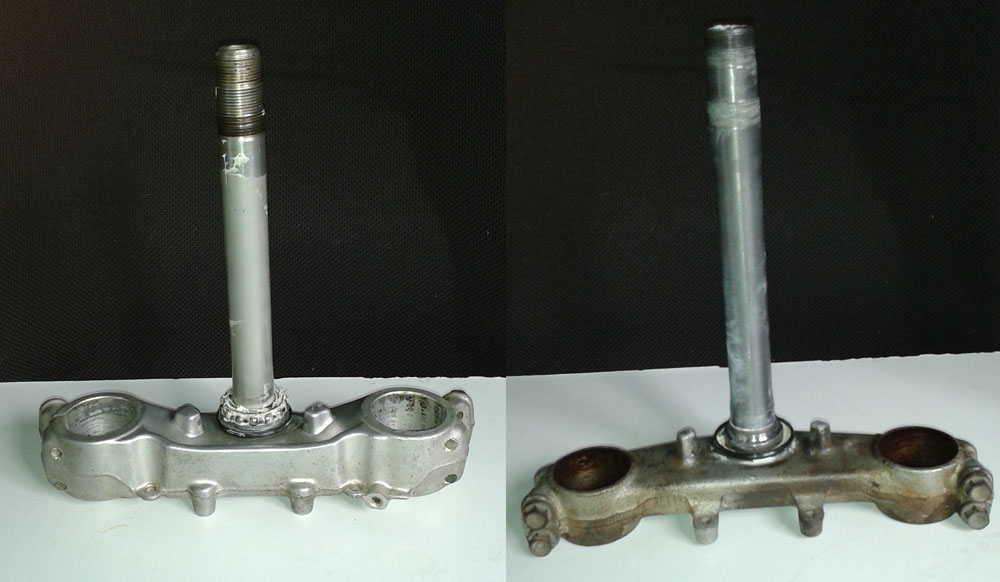

triple clamps lighter and stronger
click to enlarge
click to enlarge

reinforced shock (derived from XR?) with external regulation and greater adjustment

click to enlarge
1 front brake only (this caused the RD04 slipping to the Silhouette class during Dakar '91!)

missing chain slide and attachments

CR500 rear chain guide

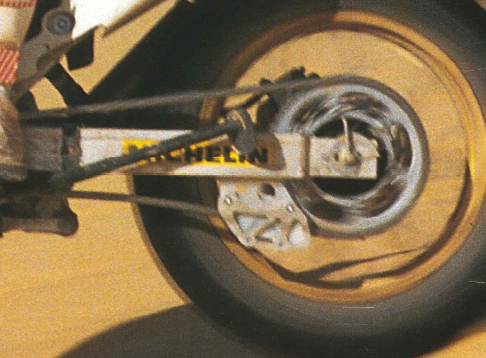

latch mechanism on snail fork to enable easy wheel change/removal

click to enlarge
Wider foot on side stand for use on soft ground
.
additional side stand for right of bike to enable wheel change without centre stand
click to enlarge
.

front of fork guard removed to quicken wheel removal without removing whole guard

shortened front mudguard


chassis serial number that begins with 6 instead of 5
